◆ Suitable for a wide range of mixing applications

    ◆ With two types for option：
       Carrying Can--- Shakes a variety of containers of all sizes and shapes（User should prepare container by himself. The max. diameter of container is 180mm, the container height range is from 65mm to 180mm）

       Carrying Bottle---Shakes eight glass bottles whose capacity is 200ml （Each arm have four bottles ,and every bottle can finish dispersing of 150ml sample）

    ◆ Two different structures：Column type and Floor type, are suitable different applications

    ◆  With timer can automatically stop mixing cycle

Main Technical Parameters

■ Motor：550W 220V 50Hz

■ Crankshaft revolution：660 r/min

■ Main shaft reciprocating stroke：16 mm

■ Upper and lower maximum amplitude：8 mm

■ Head arm swinging angle：30°

■ Overall dimension：790×520×1090 mm （length by width by height）

■ Weight：80Kg

■ Ordering Information：

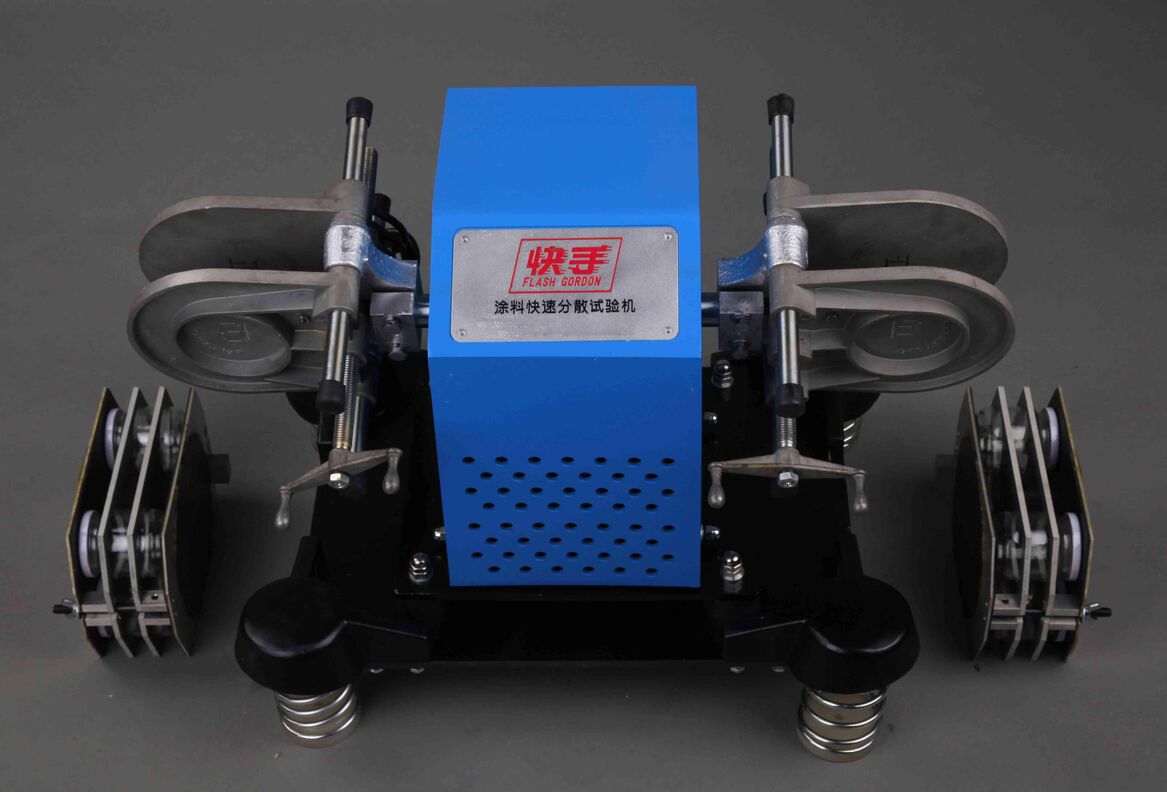

    NT 760/1  Coating Fast Dispersing Tester（Column type with carrying can）

    NT 760/2  Coating Fast Dispersing Tester（Column type with carrying bottle）

    NT 760/3  Coating Fast Dispersing Tester（Floor type with carrying can）

    NT 760/4  Coating Fast Dispersing Tester（ Floor type with carrying bottle）
