Economical DFT Gauge

Economical DFT Gauge

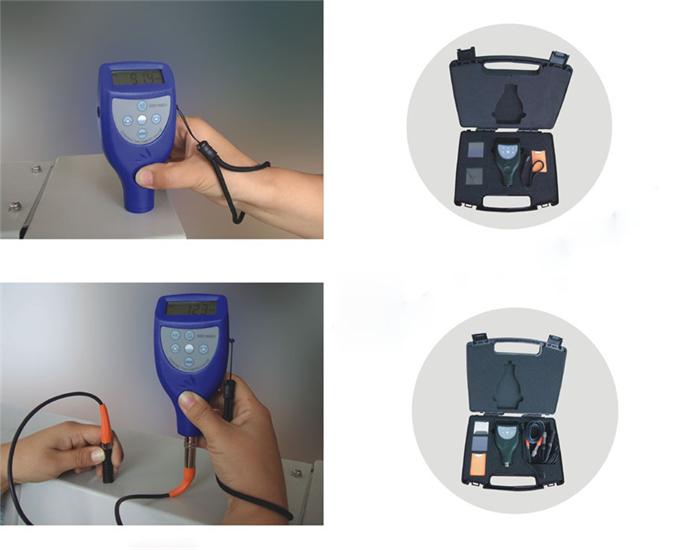

Product name:Economical DFT Gauge

Item:SR 2806

Details:

 This is a ecomomic dry film thickness gauge which can measure both non-magnetic coatings on steel and insulating coatings on non-ferrous metals.


Features:

◆ Menu operation system

◆ Two measuring mode:CONTINUE and SINGLE mode

◆ Two working Mode:DIRECT and GROUP mode

◆ Statistic Display:AVG, MAX, MIN, NO., S.DEV

◆ One point calibrating, two points calibrating and basiccalibratingeasily

◆ Memory for 400 readings(80 DIRECT and 320 GROUPreadings)

◆ Delete single readings and all group readings easily

◆ High alarm and Low alarm for all working mode

◆ Low battery, error indication

◆ USB interface for PC software (windows 98/2000/xp/vista)

◆ Accessories: Two “AAA”batteries, USB cable, CD, Calibration Iron,Calibration Aluminum,
                          Precision Standard, Giftbox with carrying case.




Main Technical Parameters



Sensor Probe

F

NF

 Working principle

Magnetic induction

Eddy current principle

 Measuring range

0~1250um

0~1250um

 Guaranteed tolerance (of reading)

(±3%+1)um

(±3%+1.5)um

 Low range Precision

0.1um

0.1um

 Minimum curvature radius

1.5mm

3mm

 Diameter of Minimum area

3mm

5mm

 Basic critical thickness

0.5mm

0.3mm

 Size(HxWxD)

113.5mm x 54mm x 27mm

 Weight

110g









←[Previous:NT 456] [Next:NT 548]→

Related Products :

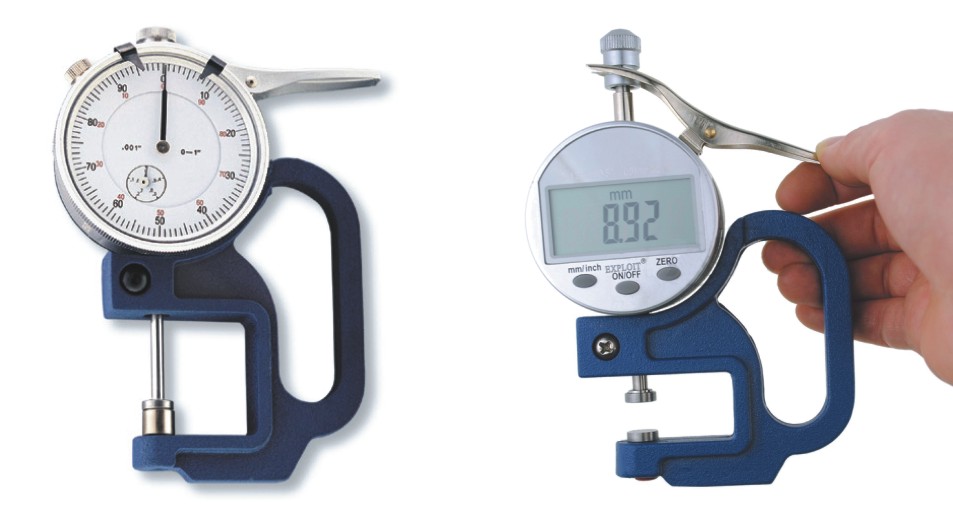

Thickness gauge
NT 8892
Thickness gauge
Coating Thickness Tester
NT 456
Coating Thickness Tester
Paint Inspection Gauge
NT 548
Paint Inspection Gauge
Dry film thickness meter
NT 542/543 series
Dry film thickness meter

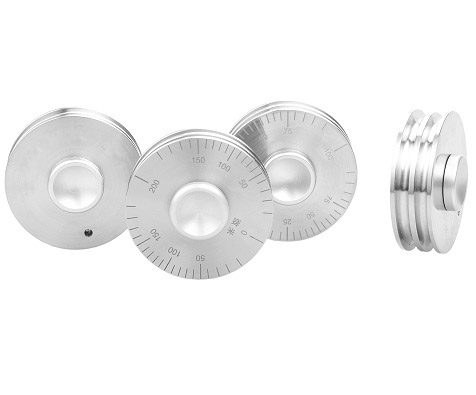

Rolling wheel wet Film Thickness Gauges
NT 532
Rolling wheel wet Film Thickness Gauges

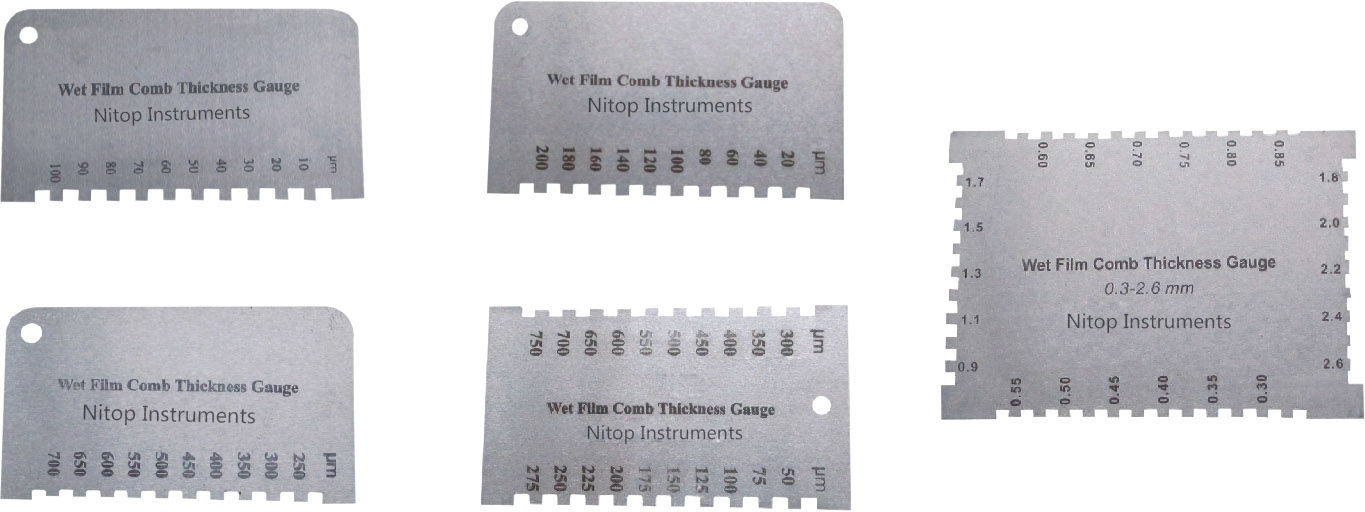

Wet Film Comb Thickness Gauges
