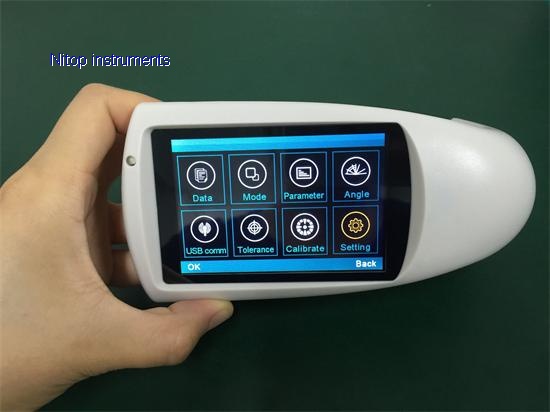

NT268 Tri Angle Touch Screen Gloss Meter 2000gu with 20/60/85 degree
NT268 tri angle touch screen gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NT268 touchscreen glossmeter conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
NT268 touch screen gloss meter 2000gu can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Features:
1. 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
2. One button for all angles measurement at the same location
3. Display 5 sets of measurement data, good for comparison
4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
5. Continuous mode to check uniformity over large areas
6. Connect to PC, more extend functions
7. Input gloss value manually
8. Large touch screen operation, easy to use
9. Beauty appearance, good man-machine communication interface
10. Powerful functions to meet many different requirements
11. Large storage to save over 5000 data
12. Built-in lithium ion rechargeable battery.
Specifications:
|
NHG268 Multi-angle Precise Gloss Meter
|
|
| |
|
Model:
|
NT268 tri angle gloss meter
|
|
|
Measuring Angle
|
20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
|
|
|
Measuring Area (mm)
|
20°: 10x10 60°: 9x15 85°: 5x36
|
|
|
Measuring Range
|
20°:0~2000GU 60°:0~1000GU 85°：0~160GU
|
|
|
Division Value
|
0.1GU
|
|
|
Measurement Range Repeatability Reproducibility
|
0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
|
|
|
Measurement Standard
|
Conform with JJG696 first class glossmeter working requirement
|
|
|
Chromaticity Corresponding
|
Corresponding with CIE 1931(2°) under CIE C light source
|
|
|
Errors
|
±1.2 , ± 1.2%
|
|
|
Measuring Time
|
1.0s
|
|
|
Dimension
|
L*W*H : 160mm*75mm*90mm
|
|
|
Weight
|
350g
|
|
|
Language
|
Chinese/English
|
|
|
Battery
|
3200mAh Li-ion Battery ，>10000 times(within 8 hours)
|
|
|
Display
|
TFT 3.5 inch, capacitive touch screen
|
|
|
Interface
|
USB/RS-232
|
|
|
Storage
|
Basic mode: 1000; Statistical Mode: 5000，Continuous mode : 5000
|
|
|
Software
|
GQC6 Quality Control Software with QC report printing functions and more extended functions.
|
|
|
Operation Temperature
|
0~40℃（32~104°F）
|
|
|
Storage Temperature
|
-20~50℃（-4~122°F）
|
|
|
Humidity
|
<85% relative humidity, no condensation
|
|
|
Standard Accessories
|
Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
|
|
|
Optional Accessories
|
Miniature Printer
|
|
|
Note
|
The specifications are subject to change without notice.
|
Warranty:
Nitop offer one year product warranty from the purchased date and lifetime maintenance (except consumables), in the absence of man-made damage and cases of force majeure.
Gloss Meter PDF Download:
