Portable color meter

Portable color meter

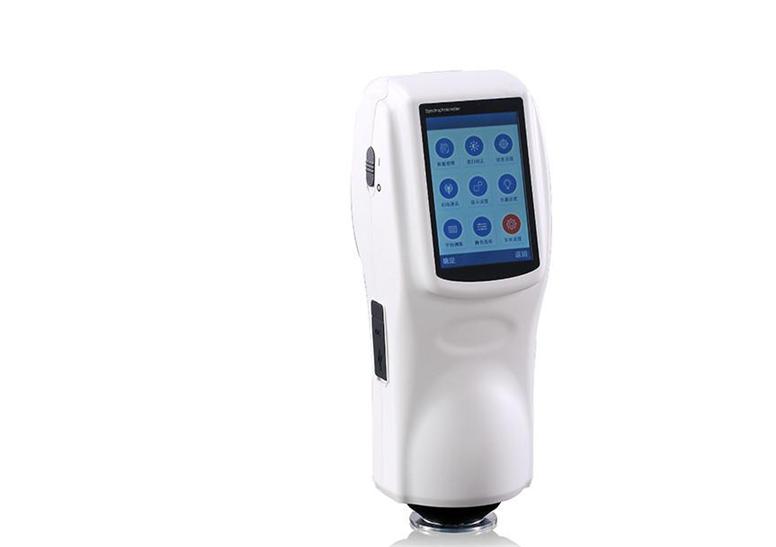

Product name:Portable color meter

Item:NT 110

Details:

 Portable Colorimeter



Since 1998, from import to domestic, NT110 precisioncolorimeter is an iconic milestone in color test industry.

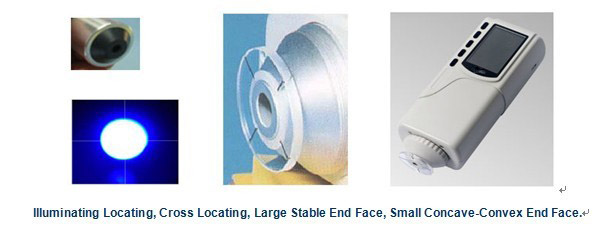

 Double LocatingIlluminating locating and cross locating

◆ DoubleMeasurement End Face Large area measurement and smallarea measurement

◆ NewIntegrating Sphere Design Morestable measurement

◆ Equippedwith Rechargeable High-Capacity Li-ion Battery


Feature and Advantages

 Built-in white plate parameters. Noneed to calibrate each time which realize rapid measurement.

◆ Double Locating: Illuminating locating andprecise cross locating.

◆ Switchable Double Measurement End Face:Large stable end face and small concave-convex end face.

◆ New Integrating Sphere Optical Path Design:Eliminating the stray light of main optical path and auxiliary optical path.Possessing the highest measurement stability and precision.

 4mm Measuring Aperture.

◆ Equipped with rechargeable high-capacityLi-ion battery. No need to purchase battery repeatedly.

◆ Configure CQCS3 software. Connect PCcomputer to realize more functions.

◆ Having got SCM Metrological Certification,CE Certification, and ISO9001 Quality Management System Certification.

◆ Hand-head structure: small and convenient;make the measurement easier.

◆ Spending huge sums on high-end mold.Product consistency approaches 100%.

 High cost performance: large output, goodquality, cheap products.

Technical Parameters

Illuminating/Viewing Geometry

8/d

Measuring Aperture

Φ4mm

Detector

Silicon photoelectric  diode

Locating

Illuminating  Locating/Cross Locating

Measurement End Face

Large stable end-face and  small concave-convex end-face

Color Space

CIEL*a*b*C*h* ;CIEL*a*b*;CIEXYZ

Color Difference Formula

△E*a b △L*a*b* △E*C*h*

Light Source

D65

Light Source Device

LED blue light excitation

Errors Between Each Equipment

≤0.80ΔE*a b

Storage

100pcs standards; 10000pcs  samples

Repeatability

Standard deviation within  △E* a b 0.08
  (Average of 30  measurements of standard white plate)

Language

English/Chinese

Weight

450g

Dimension

205×67×80 mm

Power source

Rechargeable lithium-ion  battery 3.7V@3200mAh

Lamp Life

3 years, more than 1.6  million measurements

Charging Time

8 hours--100% electricity

PC Software

CQCS3 Software

Printer (optional)

Miniature thermal printer
