Precise colorimeter

Precise colorimeter

Product name:Precise colorimeter

Item:NT 310

Details:

 Precese Computer Colorimeter



High-End Brand of Colorimeter



        NT 300 & NT 310 is a mainstream brand colorimeter introduced by NITOP which has synthesized the advantages of ten more traditional imported colorimeters and has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!



The PreferredSolution for Color Quality Control Management



        NT 300 & NT 310 high-quality portable colorimeter has adopted multi-channelcolor sensors of international brands, more stable IC platform as well asefficient and accurate algorithms to provide users with accurate and fast colormanagement and application. NT 300 & NT 310 is also designed with ergonomics and humanized operation and it has applied for a number of patents. NT 300 & NT 310 is amultifunctional colorimeter with high quality and competitive price. Nitop insistson independent research whose technology innovation is unique in colormanagement field.NT 300 & NT 310 is the most convenient colorimeter for users.


 Leading Humanity Design andConvenient Operation

★ Auto White and Black Calibration at Startup

 Structure design in line with Ergonomics

 Fool-style Operation Interface





 Stable Measurement Performance

★ The average fluctuation of △E is less than 0.06, actually more in 0.03~0.05.

★ Portable structure design which is more conductive to keeping the instrument stable whenusing.





 Flexible and Accurate Locating

★ Camera locating can solve the problem of locating a small area. The minimum width oflocating is 4mm.

★ Illumination locating is a fast, simple and convenient locating function which is theoriginal function by 3nh.





 More Measurement Modes

★ Three measuring apertures for more circumstances.

★ Five color spaces for more color schemes selection.

★ Three light sources for more circumstances.

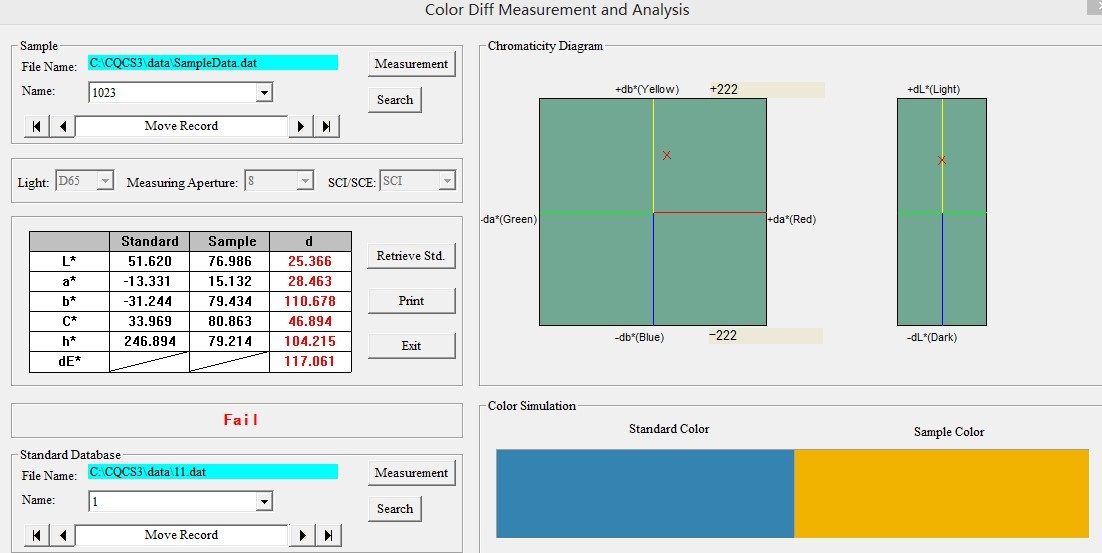

 PC Software—Realize More FunctionExpansion

★ Nitop has the intellectual property of PC software. The corresponding software serial number and password protection are configured in BGD colorimeter.

★ Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample data base management, simulating object color, etc.





 Advanced Power Management Design

★ Nitop is the first enterprise using high capacityLi-ion battery in colorimeter.

Nitop Li-ion battery can berepeatedly charged which will save cost. Meanwhile, it can measure more than3000 times on one charge to ensure the stability of long time measurement.

National Patent and InnovativeTechnology

No.1 Camera locating andillumination location; New functions of double locating

No. 2 Built-in white plate;Automatic calibration at startup

★ No. 3 Extended aperture (optional), available formeasuring concave surface






Ordering Information

Technical Parameters

NT 300
Precise Computer Colorimeter

NT 310
Precise Computer Colorimeter

Illuminating/Viewing Geometry

8°/d

Measuring Aperture

Φ8mm

Φ8mm/Φ4mm

Detector

Silicon photoelectric diode

Color Space

CIEL*a*b*C*h*CIEL*a*b*CIEXYZ

CIEL*a*b*C*h*CIEL*a*b*CIEXYZCIERGBCIEL*u*v* CIEL*C*hYellowness & Whiteness Color Fastness

Color Difference Formula

E*a bL*a*b*E*C*h*

E*a bL*a*b*E*C*h*

ECIE94E hunter

Light Source

D65

D65D60A

Light Source Device

LED blue light excitation

Errors Between Each Equipment

≤0.40ΔE*a b

Storage

100 pcs standards 20,000 pcs samples

RepeatabilityAverage of 30 measurements of standard white plate

Standard deviation within E* a b 0.07

Standard deviation within E* a b 0.06

Language

English/Chinese

Weight

500g

Dimension

205×70×100 mm

Power source

Rechargeable lithium-ion battery 3.7V@3200mAh

Lamp Life

5 years, more than 1.6 million measurements

Charging Time

8 hours--100% electricity

Measuring Times Before Recharging

3000 times in 8 hours

Operating Environment

-10~40, relative humidity 0~85% with no condensation

PC Software

CQCS3 Software

Data Interface

USB

Extended Aperture Optional

----

Φ8mm extended aperture, available for measuring concave surface

PrinterOptional

Miniature thermal printer
