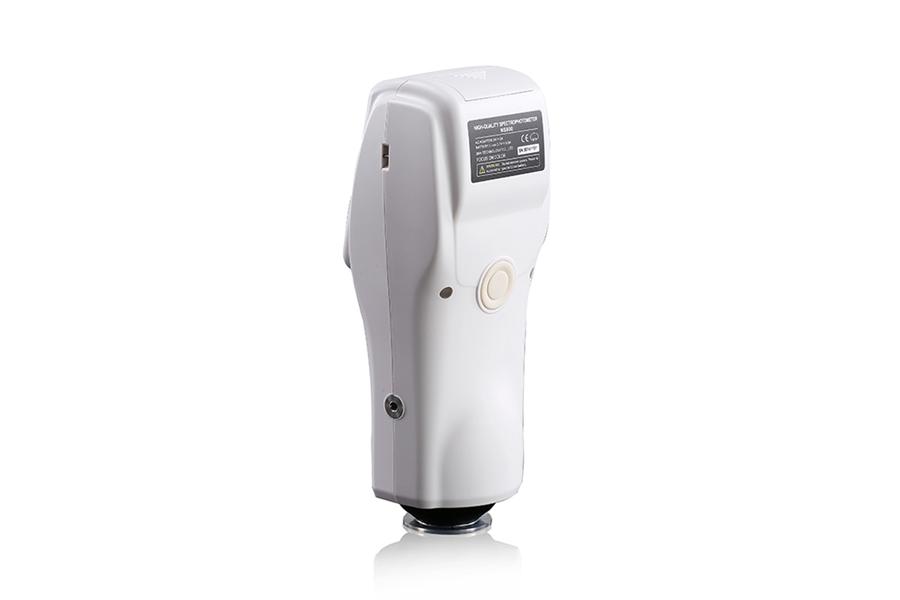

Spectrophotometer
NT 800 & NT 810 Spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NT 800 & NT 810 Spectrophotometer with higher accuracy is very sensitive to any colors.It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.
In the R&D process, NITOP scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.
NITOP also analyzed the parameters from Japan,American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NT 800 & NT 810 and Japanese spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of NITOP high technology which realizes to be fully compatible with international market.
Application
NT 800 & NT 810 Spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment,printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
It can measure reflectance spectrum and other color index precisely. NT 800 & NT 810 Spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument isequipped with high-end color management software which can connect PC to achieve more extension functions.
Characters
◆ Aesthetic design perfectly combined with ergonomics structure.
◆ 45°/0° or d/8° geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
◆ 3.5inch large capacitive touch screen.
◆ Two standard observer perspectives, multiple light sources modes, a variety ofcolor systems.
◆ The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
◆ Large capacity storage, can save more than 10000 data.
◆ PC software with powerful extension functions.
◆ High hardware configuration with a number of innovative technologies.
◆ Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
◆ 15°oblique angle screen, more in line with the human eye observation.
Main Parameters
|
Ordering Information →
Technical Parameters ↓
|
NT 800
Spectrophotometer
|
NT 810
Spectrophotometer
|
|
Illumination/observation system
|
45°/0 °
(45 ring-shaped illumination, vertical viewing)
|
d/8°
(diffused illumination, 8-degree viewing angle)
|
|
Integrating sphere Size
|
Φ 58mm
|
|
Light Source
|
Combined LED sources
|
|
Sensor
|
Silicon photodiode array
|
|
Wavelength range
|
400~700nm
|
|
Wavelength interval
|
10nm
|
|
Reflectance range
|
0~200%
|
|
Measuring Aperture
|
Φ 8mm
|
|
Color Space
|
CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB&WI&YI
|
|
Color difference Formula
|
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc（2:1）, ΔE*cmc（1:1）, ΔE*cmc（l:c）, CIE2000ΔE*00, ΔE（h）
|
|
Other Chromaticity Data
|
WI(ASTM E313，CIE/ISO, AATCC, Hunter), YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness
|
|
Observer
|
2°/10°
|
|
Illuminant
|
D65，A, C, D50，D55，D75，F1，F2（CWF），F3，F4，F5，F6，F7（DLF），F8，F9，F10（TPL5），F11（TL84），F12（TL83/U30）
|
|
Display Data
|
Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result,Color Offset, Color Simulation, color index setting（ΔE*94, ΔE*cmc, ΔE2000）, tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
|
|
Measurement Time
|
1.5s
|
|
Repeatability
|
Spectral Reflectance：standard deviation within 0.1%（400~700nm: within 0.2%）
Colorimetric Value： Standard deviation within Delta E*ab 0.04 （Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.）
|
|
Inter Instrument Agreement
|
Within Delta E*ab 0.2 （Average for 12 BCRA Series II color tiles）
|
|
Dimension/Net Weight
|
90×77×230（L×W×H）/600g
|
|
Battery
|
Li-ion battery：5000 times within 8 hours
|
|
Lamp Life
|
5 years, more than 1.6 million measurements
|
|
Display Screen
|
TFT 3.5inch, Capacitive Touch Screen
|
|
Interface
|
USB/RS-232
|
|
Data Memory
|
1,000 Standards, 15,000 Samples
|
|
Standard Accessory
|
Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
|
|

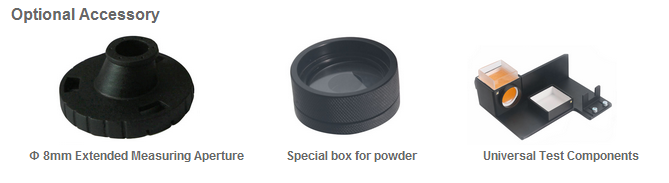

Optional Accessory
|
Universal Test Components, Micro Printer, Special test box for powder
|
|
Others
|
Provide complete spectrum reflectance curve, Input L, a, b value manually
|
|
